Size

weight

Max penetration (mm)

Focal Size (mm)

Angle

RD-1805

4

80-180KV

0.9*0.9

40+5°

Dia116*510mm

8.9

32

4.8KG

RD-2305

5

100-230KV

0.9*0.9

40+5°

Dia280*600mm

12

32

5KG

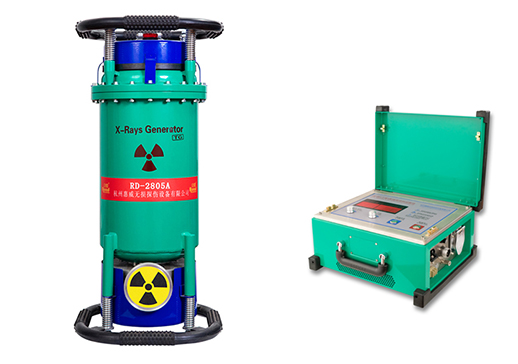

RD-2805

5

150-280KV

2.0*2.0

40+5°

Dia280*600mm

26

45

9kg

RD-300LG

6

150-300KV

2.6*2.6

40+5°

Dia270*810

45

80

1.5KG

RD-3005

6

170-300KV

40+5°

Dia260*600

28kg

52

5kg

RD-3505

7

170-350KV

40+5°

Dia320*650

34kg

55

9kg

RD-3605

7

170-360KV

2.5

40+5°

Dia320*650

34kg

60

9kg

RD-G300

6

30-300KV

2.5*2.5

40+5°

Dia305*880

30

55

11

AC 220V+/-10%, 50Hz

Output

Tube current

5mA

High voltage transfer input voltage fluctuation

+/- 1%

X Ray Generator

Cooling method

Force air cooling

Insulated method

SF6 gas insulation

Soft working pressure (20℃）

0.35~0.45Mpa

Working Condition

Temperature

-30-40℃

Relative Humidity

＜85%

Altitude

1000m

Max Penetration Condition

Steel

A3(mm)

Focal length

600m

Exposure

≤30mAmin

Film

Double-sided lead foil sensitization

Darkroom treatment

20+/-2℃， 5min

Optic density

D≥2.0

The controller

Size

Weight

Timing error

5min +/- 10%

Working Rate

Working & rest 2:1 working rate, the max exposure time 9.5min
