	According to the regulations on the management of information release of dangerous goods on the Internet, the unit that purchases and uses the radiation device shall obtain a radiation safety license before using the purchased radiation device.







        Product center

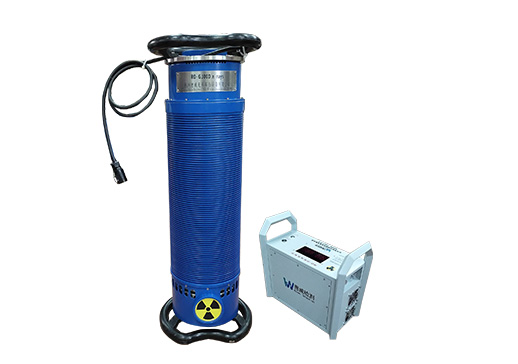

        RD - G300 series




        RD - G300 series


        High frequency industrial X-ray machine






        RD - G300 series
















        RD-G300D、 RD - G300H

        Model
        Input Power Capacity
        KVA
        Tube Voltage
        KVP
        X Ray Tube
        X Ray Generator
        Controller
        Size
        weight
        Max penetration (mm)
        Focal Size (mm)
        Angle
        RD-1805
        4
        80-180KV
        0.9*0.9
        40+5°
        Dia116*510mm
        8.9
        32
        4.8KG
        RD-2305
        5
        100-230KV
        0.9*0.9
        40+5°
        Dia280*600mm
        12
        32
        5KG
        RD-2805
        5
        150-280KV
        2.0*2.0
        40+5°
        Dia280*600mm
        26
        45
        9kg
        RD-300LG
        6
        150-300KV
        2.6*2.6
        40+5°
        Dia270*810
        45
        80
        1.5KG
        RD-3005
        6
        170-300KV

        40+5°
        Dia260*600
        28kg
        52
        5kg
        RD-3505
        7
        170-350KV

        40+5°
        Dia320*650
        34kg
        55
        9kg
        RD-3605
        7
        170-360KV
        2.5
        40+5°
        Dia320*650
        34kg
        60
        9kg
        RD-G300
        6
        30-300KV
        2.5*2.5
        40+5°
        Dia305*880
        30
        55
        11
        Technical Specification
        Item
        Technical Data
        AC Power
        AC 220V+/-10%, 50Hz
        Output
        Tube current
        5mA
        High voltage transfer input voltage fluctuation
        +/- 1%

        X Ray Generator
        Cooling method
        Force air cooling
        Insulated method
        SF6 gas insulation
        Soft working pressure (20℃）
        0.35~0.45Mpa
        Working Condition
        Temperature
        -30-40℃
        Relative Humidity
        ＜85%
        Altitude
        1000m
        Max Penetration Condition
        Steel
        A3(mm)
        Focal length
        600m
        Exposure
        ≤30mAmin
        Film
        Double-sided lead foil sensitization
        Darkroom treatment
        20+/-2℃， 5min
        Optic density
        D≥2.0
        The controller
        Size

        Weight

        Timing error
        5min +/- 10%
        Working Rate
        Working & rest 2:1 working rate, the max exposure time 9.5min






        The mature application of digital X-ray imaging (DR) technology requires the use of high frequency or DC high voltage ray sources, which can eliminate the frequency conversion (fluctuation) interference fringes in DR applications. The machine has applied for a number of patent technology.
        This model adopts double - phase capacitor voltage, filament resonance circuit. The voltage module is controlled by PWM, the current module is controlled by PFM, and the overall control is controlled by three independent microcomputer chips. The main characteristics are stable DC high voltage, high efficiency of the ray machine, high power factor of the whole machine, and excellent performance for the application of on-site generator power supply. It is also one of the few portable ray flaw detectors that can pass the electromagnetic compatibility test.







        ★Yangzi petrochemical Fangjing plant high temperature pipeline online DR detection
        ★ Akzonobel Chemicals (Ningbo) Co., LTD. Clamp sleeve on-line DR test
